Automatic Tool Change Countertop Milling Polishing Machine for Granite, Marble, Quartz CNC Machining Center
Product Specifications
| Attribute | Value |
| Model NO. | CMC-3014 |
| Type | CNC Cutting Machine |
| Usage | Concrete Curb, Granite, Marble |
| Application | Machinery & Hardware, Art & Craft, Construction, Stone Industry |
| Source Voltage | 380V |
| Automation | Automatic |
| Cutting Ability | High Speed |
| Control | CNC |
| Certification | API, CCC, SONCAP, GOST, ISO, CE |
| X-Axis Travel | 3000mm |
| Y-Axis Travel | 1400mm |
| Z-Axis Travel | 350mm |
| Outline Dimension | 5350*2600*2300mm |
| Water Consumption | 3m³/H |
| Advantage | Multi-Function, High Precision, Strong Stability |
| Warranty Time | One Year |
| Transport Package | Plastic Package, Suitable for Sea Transportation |
| Trademark | Xianda |
| Origin | Jinjiang, Fujian, China |
| Production Capacity | 1000 Sets/Year |
Packaging Details
Package Size: 535.00cm × 260.00cm × 230.00cm
Package Gross Weight: 6000.000kg
Product Description

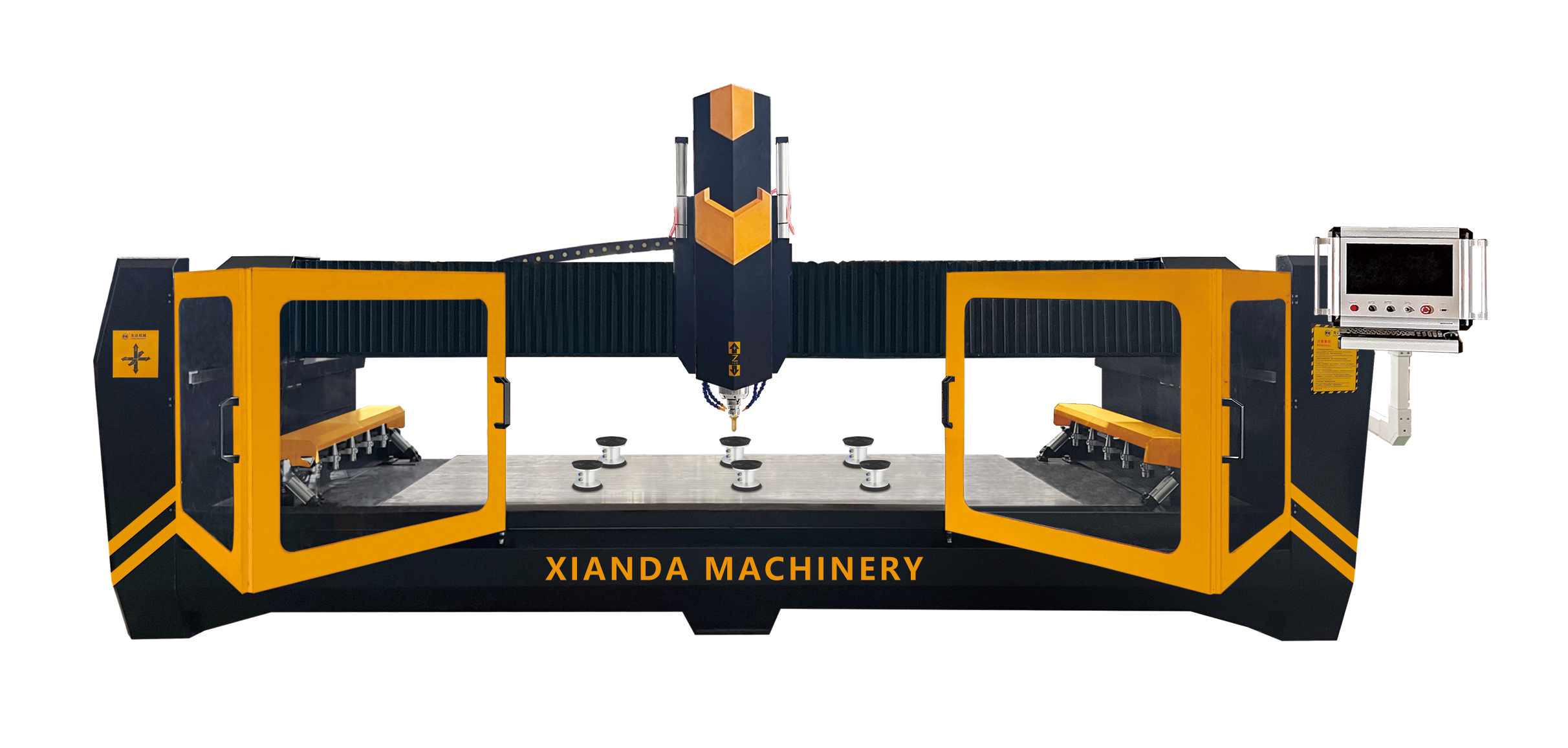

This CNC machining center features high-end CNC system control with automatic tool changing spindle structure and double-sided in-line tool magazine. It incorporates high-precision linear guides, ball screw transmission, and oil-immersed track structure, offering high intelligence, precision, and strong stability.
The machine processes various materials including marble, granite, ceramics, glass, microlite, and steel. It excels at producing wash basins, countertops with beautiful curves and luxurious shapes, as well as intricate relief works and 2D/3D art lettering.
Technical Parameters
| Parameter | Unit | CMC-3014 |
| X-axis travel | mm | 3000 |
| Y-axis travel | mm | 1400 |
| Z-axis travel | mm | 350 |
| Maximum processing thickness | mm | 300 |
| Spindle power | kw | 11 (optional 15) |
| Tool magazine capacity | nr | 5+5 |
| Spindle motor speed | R.P.M | 1-18000 |
| Air speed | m/min | 15 |
| Outline dimension | mm | 5350×2600×2300 |
| Water consumption | m3/h | 3 |
About Xianda Machinery
Fujian Xianda Machinery Co., Ltd is a leading manufacturer of stone cutting machines and tools in China, established in 1985. Our 20,000m³ facility is located in Jinjiang Wuli Industrial area, adjacent to the historic Wuli Bridge and the world's largest stone market in Shuitou.
With over 34 years of experience, we specialize in developing and producing diamond wire saw machines, column processing machines, bridge cutting machines, carving machines, and profiling linear machines. We hold approximately 80% of China's market share for column processing machines and serve customers in over 30 countries worldwide.
Since our foundation, we've maintained "Top Technology and Superior Quality" as our standard, earning CE and ISO Quality Gold Awards. Our company has been recognized as a "China Recommend Building Manufacture Enterprise" and received "3A Enterprise Credit Evaluation."
Our Product Range
Our Services
- Machine installation and operation training
- Overseas engineer support for machinery service
- 24-hour online after-sales service
Quality Assurance
- Experienced quality control team
- Strict machine inspection process
- Testing video available before shipment upon request
Frequently Asked Questions
How to place an order with your company?
1. Inquiry - Professional quotation
2. Confirm price, lead time, logo, payment terms
3. Xianda sales sends Proforma Invoice with seal
4. Customer makes deposit payment and sends bank receipt
5. Sales confirms receipt and arranges production
How is after-sales service provided?
Engineers can be dispatched for machinery assembly and support.
Are you a manufacturer?
Yes, we have been manufacturing stone machinery for over 30 years.
What is the warranty period?
We provide one year parts warranty service.
What materials can this machine process?
Designed for cutting lines on stone including columns, big arc shaped slabs, and special stone shapes.
