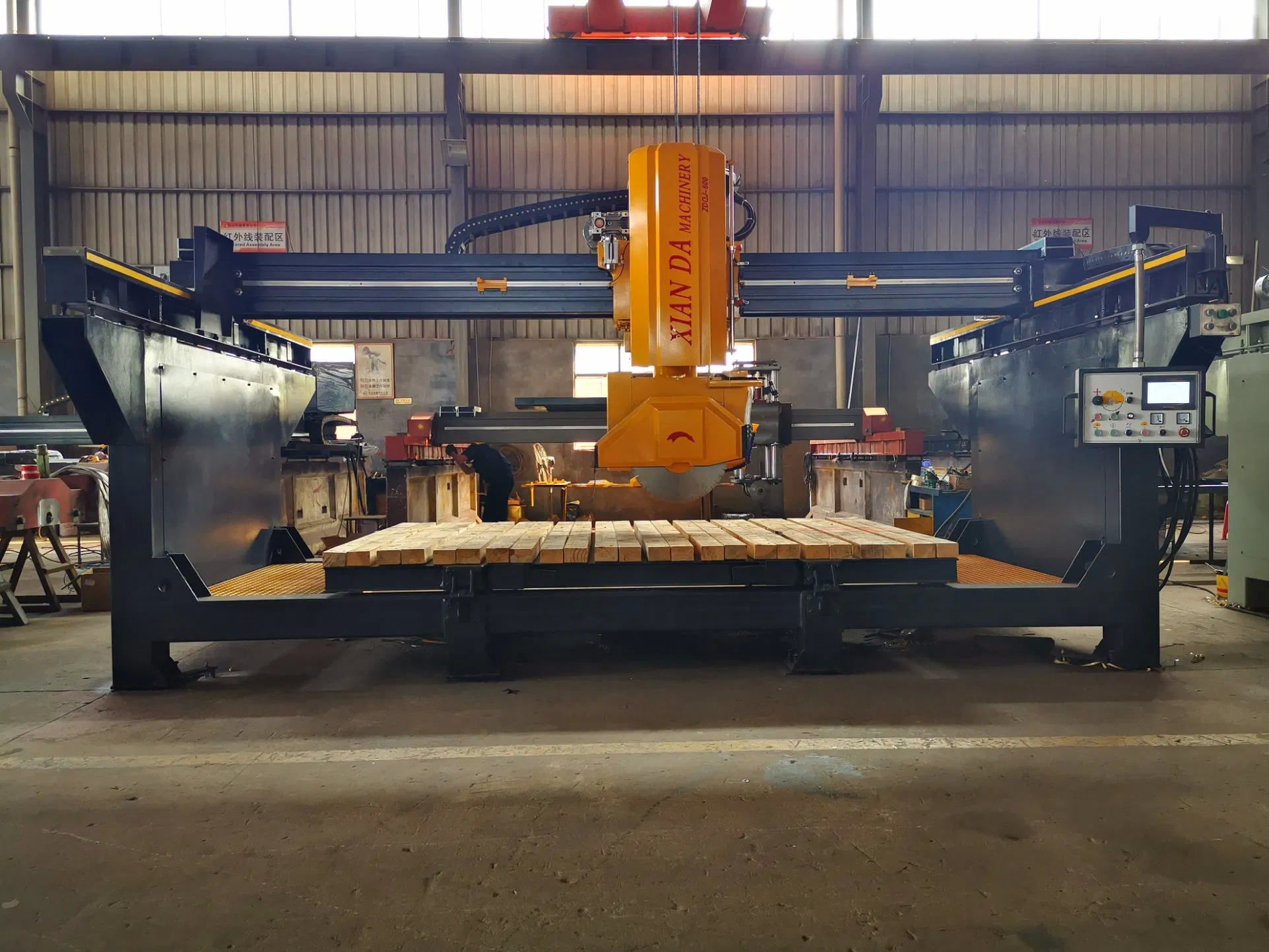

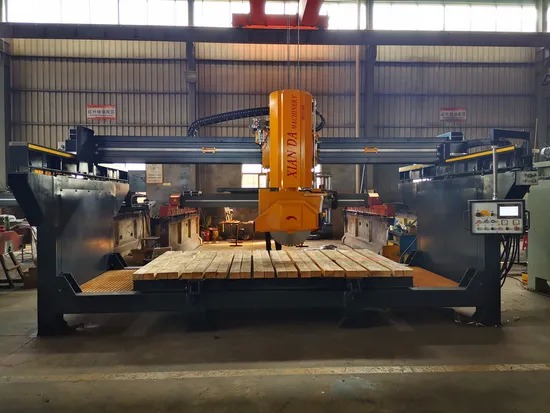

ZDBL-450/600 Integrated Bridge Stone Cutting Machine
Basic Information

Model No.: ZDBL-450/600

Type: CNC Cutting Machine

Usage: Granite, Marble

Application: Machinery & Hardware, Mineral Industry, Stone Industry

Source Voltage: 380V

Automation: Automatic

Cutting Ability: High Speed

Control: CNC

Certification: CCC, ISO, CE

Blade Diameter Range: 350-450 mm

Max Processing Size: 3200*2000*100 mm

Worktable Size: 3200*2000 mm

Main Motor: 20.5 Kw

Specification: 6000*3600*2650 mm

Trademark: Xianda

Origin: Jinjiang, Fujian, China

HS Code: 84641090

Production Capacity: 1000 Sets/Year

Product Description

The ZDBL-450/600 Integrated Bridge Cutting Machine features:

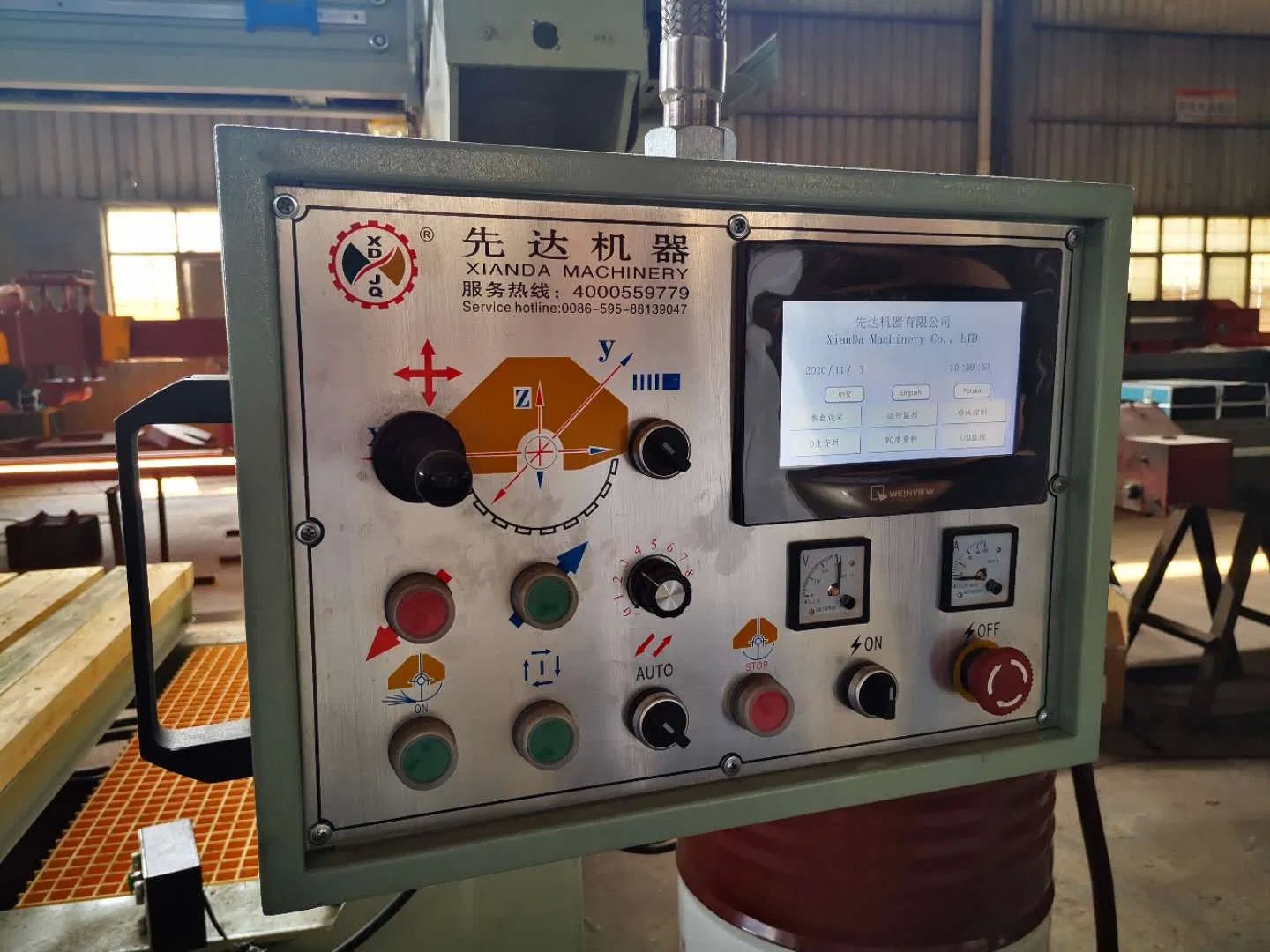

  • PLC system with human-machine intelligent operation interface
  • Double hydraulic lifting with chrome guide sleeve for durability
  • Multi-layer seal design for waterproof, dustproof, and leakproof performance
  • High precision linear slide track sidebeam
  • Encoder-controlled movement with magnetic railing ruler for precise speed adjustment
  • Dedicated stone machinery motor
  • Cutting head rotation (0°-90°) for enhanced processing speed
  • Blade tilt capability (0°-45°) for wider application range
  • Compact structure with easy operation and high cutting precision
  • Ideal for processing high-value granite and marble
Integrated Bridge Stone Cutting Machine Saw CNC Machine Engraving Cutter Tomb Stone 0
Technical Parameters
Parameter Unit ZDBL-450 ZDBL-600
Blade diameter range mm Φ350-Φ450 Φ350-Φ600
Max processing size mm 3200*2000*100 3200*2000*170
Worktable size mm 3200*2000 3200*2000
Worktable tilting degree ° 0-85° 0-85°
Blade rotation degree ° 0-90° 0-90°
Blade tilting (optional) ° 0-45°(optional) 0-45°(optional)
Main motor kw 15 permanent magnet motor 15 permanent magnet motor
Gross motor kw 20.5 20.5
Water consumption m³/h 3 3
Outline dimension mm 6000*3600*2650 6000*3600*2950
Gross weight kg 6500 7000
Product Images
Integrated Bridge Stone Cutting Machine Saw CNC Machine Engraving Cutter Tomb Stone 1 Integrated Bridge Stone Cutting Machine Saw CNC Machine Engraving Cutter Tomb Stone 2 Integrated Bridge Stone Cutting Machine Saw CNC Machine Engraving Cutter Tomb Stone 3 Integrated Bridge Stone Cutting Machine Saw CNC Machine Engraving Cutter Tomb Stone 4
Company Profile

Fujian Xianda Machinery Co.,Ltd is a leading manufacturer of stone cutting machines and tools in China, established in 1985 with a 20,000m³ facility located in Jinjiang Wuli Industrial area.

With over 34 years of experience, we specialize in developing and producing:

  • Diamond wire saw machines
  • Column processing machines
  • Bridge cutting machines
  • Carving machines
  • Profiling linear machines
  • Baluster machines

We hold approximately 80% of the Chinese market for column processing machines and serve customers in over 30 countries worldwide. Our commitment to "Top Technology and Superior Quality" has earned us CE and ISO certifications, along with numerous industry awards.

Our mission is to "Create the highest value of your stone" through innovative machinery solutions.

Integrated Bridge Stone Cutting Machine Saw CNC Machine Engraving Cutter Tomb Stone 5
Certifications
Integrated Bridge Stone Cutting Machine Saw CNC Machine Engraving Cutter Tomb Stone 6 Integrated Bridge Stone Cutting Machine Saw CNC Machine Engraving Cutter Tomb Stone 7
Our Advantages
  • Comprehensive machine installation and operation training
  • Overseas engineer support available
  • 24-hour online after-sales service
  • Prompt response from our sales and customer service teams
Manufacturer Profiles Quality Control
  • Top 10 stone cutting machine manufacturer since 1985
  • 70% China market share in special shape stone cutting
  • Specialized in export-oriented production
  • Experienced QC team
  • Strict machine inspection
  • Pre-shipment testing videos available
Delivery Time Warranty
Approximately 3 weeks after payment confirmation 1 year warranty on all machines
After Sales Service
  • 24-hour response time for all inquiries
  • Round-the-clock technical support
  • Free replacement for quality-related failures
Frequently Asked Questions
How to place order to your company?

1. Inquiry - Professional quotation
2. Confirm price, lead time, logo, payment terms
3. Xianda sales sends Proforma Invoice
4. Customer makes deposit payment
5. Production arranged after payment confirmation

How is After-sales Service Provided?

Engineers available for machinery assembly support

Are you Manufacture Factory?

Yes, we have been manufacturing stone machinery for over 30 years

What about the warranty time of the machine?

We provide one year parts warranty service
