DRM-300 Vertical Drilling Machine with Ø300 mm Drilling Capacity 700 mm Vertical Stroke and 7.5 kW Main Motor

1 set
MOQ
To Be Negotiable
harga
DRM-300 Vertical Drilling Machine with Ø300 mm Drilling Capacity 700 mm Vertical Stroke and 7.5 kW Main Motor
fitur Galeri Deskripsi Produk Quote request suatu
fitur
Spesifikasi
Warna: Hitam dan Kuning, Opsional, Disesuaikan
Nilai: A-GRADE, Permintaan Pelanggan
Model: DRM-300
Kata-kata kunci: Mesin Bor Vertikal, Mesin Bor Inti Batu, Bor Lubang Batu Nisan
Sumber Daya: Listrik
Berat: 1300kg
Sistem Pengendalian: petunjuk
Kapasitas produksi: 1000 set/tahun
Aplikasi: Batu Pengeboran
Menyoroti:

Ø300 mm drilling capacity Vertical Drilling Machine

,

700 mm vertical stroke Stone Core Drilling Machine

,

7.5 kW main motor Tombstone Hole Drill
Informasi dasar
Tempat asal: Jinjiang, Fujian, Cina
Nama merek: XIANDA MACHINERY
Sertifikasi: API, CCC, SONCAP, GOST, ISO, CE, SGS;IAF
Nomor model: DRM-300
Syarat-syarat pembayaran & pengiriman
Kemasan rincian: Kawat tali cambuk, cocok untuk transportasi laut.
Waktu pengiriman: 1 bulan
Syarat-syarat pembayaran: L/C,D/A,D/P,T/T,Western Union,MoneyGram
Menyediakan kemampuan: 1000 set/tahun
Deskripsi Produk
DRM-300 Vertical Drilling Machine
Precision Vertical Driller for Tombstones, Lanterns & Crafts - Ø300 mm * 700 mm Stroke
Machine Overview
The DRM-300 is a vertical-spindle drilling machine built for deep, accurate holes in tombstones, address stones, lantern blanks and craft blocks. With Ø 300 mm max bit, 700 mm lift and 7.5 kW direct motor, it drills straight, chip-free holes 10* faster than hand-held units—ideal for single-piece or small-batch stone workshops.
Why DRM-300?
Feature Benefit
Ø 300 mm drilling capacity Accepts large core bits, countersinks and lantern hollow bits
700 mm vertical stroke Drills through 650 mm stone in one pass
Cross-beam lifting Bit approaches stone, not table—safer, faster setup
7.5 kW main motor Constant torque under full load, no belt slip
2 m³/h wet system Cools bit, removes sludge, extends tool life
Quick Specs
Parameter DRM-300
Max drilling diameter Ø300 mm
Cross-beam lift 700 mm
Table size 500 * 400 mm (standard)
Main motor 7.5 kW, 3-phase, 380 V
Spindle speed 480-1 400 rpm (inverter)
Water consumption 2 m³/h (recycled)
Dimensions 1 300 * 800 * 2 500 mm
Weight ~1 300 kg
DRM-300 Vertical Drilling Machine with Ø300 mm Drilling Capacity 700 mm Vertical Stroke and 7.5 kW Main Motor 0 DRM-300 Vertical Drilling Machine with Ø300 mm Drilling Capacity 700 mm Vertical Stroke and 7.5 kW Main Motor 1 DRM-300 Vertical Drilling Machine with Ø300 mm Drilling Capacity 700 mm Vertical Stroke and 7.5 kW Main Motor 2
Ideal Applications
  • Tombstone flower holes
  • Address stone cores
  • Lantern craft
  • Countertop faucet holes
  • Monument base anchors
Materials: granite, marble, basalt, engineered stone, limestone.
Workflow (1 Operator)
  1. Place stone on table, clamp manually

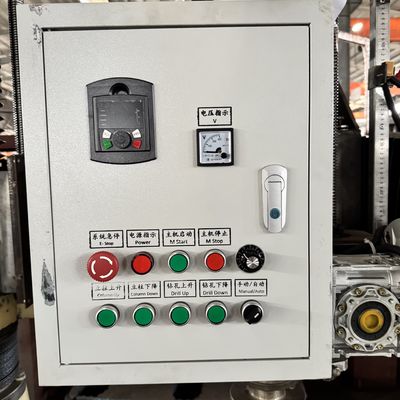

  2. Select speed on inverter panel

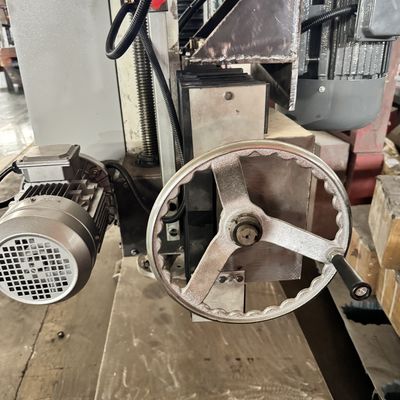

  3. Lower bit with hand-wheel until contact
  4. Start spindle + water - automatic feed completes hole
  5. Lift bit, remove stone - core falls out
Package, Delivery & Warranty
  • Export crate: plywood + steel frame
  • Delivery: 10 days (stock) / 20 days (custom colour)
  • Warranty: 12 months for parts
  • Installation: video-guide + remote support; on-site service optional
  • Spare parts: 48 h dispatch from regional warehouse
Pricing, MOQ & Shipping
Item Detail
MOQ 1 (one) machine
Shipping Sea freight to nearest port included
Incoterms FOB, CIF, DDP optional
Lead time 10 days stock / 20 days custom
Payment T/T 30% deposit, 70% before shipment; L/C at sight accepted
DRM-300 Vertical Drilling Machine with Ø300 mm Drilling Capacity 700 mm Vertical Stroke and 7.5 kW Main Motor 3 DRM-300 Vertical Drilling Machine with Ø300 mm Drilling Capacity 700 mm Vertical Stroke and 7.5 kW Main Motor 4 DRM-300 Vertical Drilling Machine with Ø300 mm Drilling Capacity 700 mm Vertical Stroke and 7.5 kW Main Motor 5 DRM-300 Vertical Drilling Machine with Ø300 mm Drilling Capacity 700 mm Vertical Stroke and 7.5 kW Main Motor 6
