Discovery 4-2500 CNC Diamond Wire Saw for Stone Cutting

1
MOQ
To Be Negotiable
harga
Discovery 4-2500 CNC Diamond Wire Saw for Stone Cutting
fitur Galeri Deskripsi Produk Quote request suatu
fitur
Spesifikasi
Panjang kawat: 10m
Berat kotor: 6000kg
Ukuran pemrosesan maksimal: 2000*3000*1500mm
Kata-kata kunci: Mesin batu
Kecepatan kawat: 0-40m/s
Nomor Model.: Discovery 4-2000/2500/3000
Konsumsi air: 6m3/jam
Kontrol: CNC
Ukuran pemrosesan maksimal: 3000*2500*1500mm
Diameter Kawat: 0.6-1.8mm
Otomatisasi: Otomatis
Tipe Kontrol: CNC
Panjang pemotongan: 20-60m
Diameter: 8.5mm hingga 11.5mm
Memotong presisi: Tinggi
Poros: 15kw
Ukuran troli: Ukuran 1400*2500mm
Jarak Penyesuaian: 450mm
Motor kotor: 11kw
Sistem Pengendalian: Sistem PLC
Nilai Daya: 2.2KW
Menyoroti:

CNC diamond wire saw for stone

,

2500mm diamond wire saw machine

,

stone cutting wire saw with CNC

Informasi dasar
Tempat asal: Jinjiang, Fujian, Cina
Nama merek: Xianda Machinery
Sertifikasi: API, CCC, SONCAP, GOST, ISO, CE, SGS;IAF
Nomor model: Discovery 4-2000/2500/3000
Syarat-syarat pembayaran & pengiriman
Kemasan rincian: Paket plastik, cocok untuk transportasi laut
Waktu pengiriman: 1 bulan
Syarat-syarat pembayaran: L/c , t/t , d/p , western union , paypal , money gram , lainnya
Menyediakan kemampuan: 1000 set/tahun
Deskripsi Produk

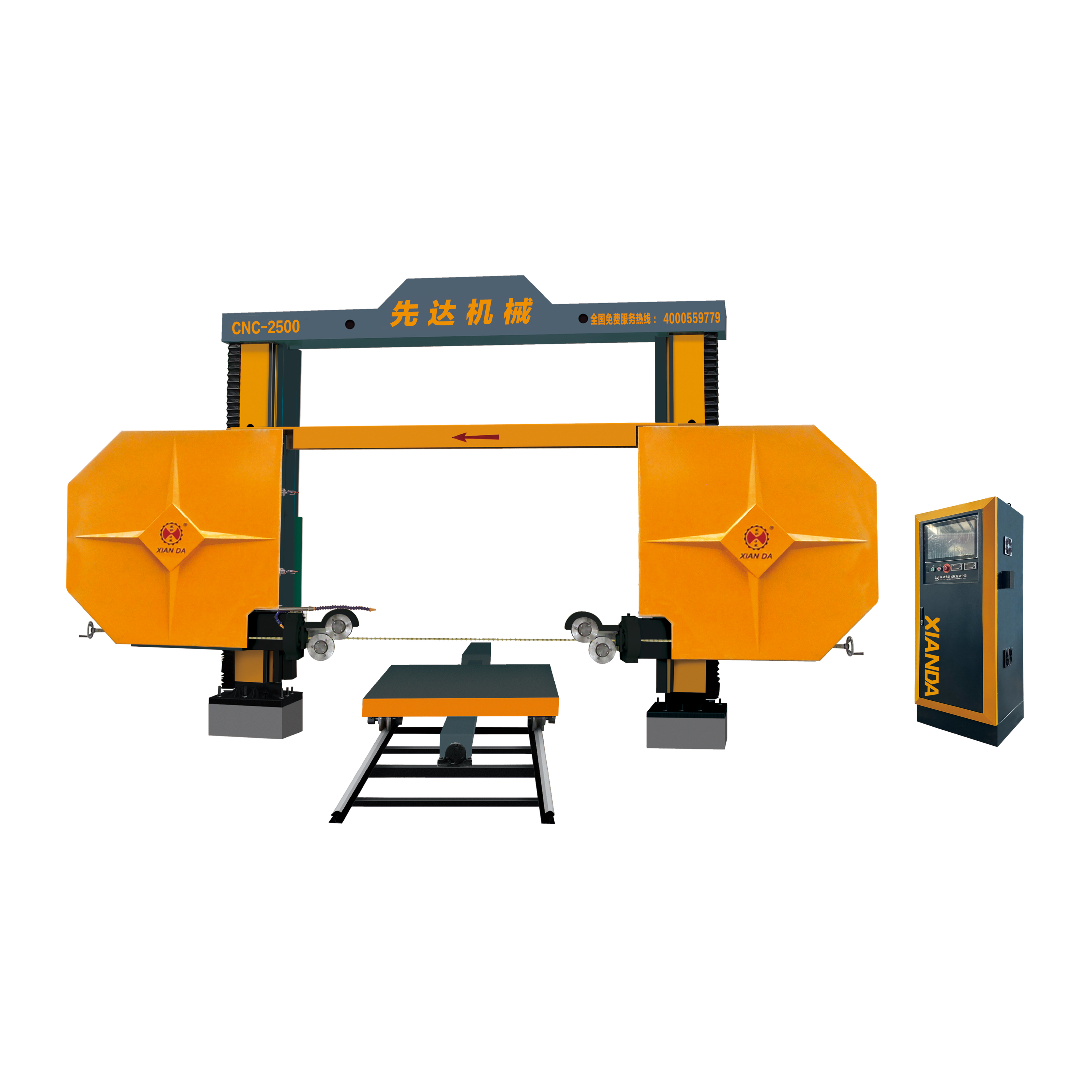

CNC Diamond Wire Saw Discovery 4-2500 Ultimate Stone Cutting Machine
Key Specifications
Attribute Value
Wire Length 16.7m
Gross weight 6000kg
Max processing size 2000*3000*1500mm
Wire Speed 0-40m/s
Model NO. Discovery 4-2000/2500/3000
Water Consumption 4m3/H
Control CNC
Wire Diameter 0.6-1.8mm
Automation Automatic
Cutting Precision High
Spindle 15KW
Control System PLC SYSTEM
Technical Specifications
Parameter Max processing size Wheel diameter Trolley size Table bearing weight Wire speed Main motor Outline dimension Gross weight Water consumption
Discovery4-2000 2000*3000*1500mm 1600mm 1400*2500mm 20T 0-40m/s 11kw 6800*6300*3950mm 6000kg 4m³/h
Discovery4-2500 2500*3000*1500mm 1600mm 1400*2500mm 20T 0-40m/s 11kw 7800*6300*3950mm 6250kg 4m³/h
Discovery4-3000 3000*3000*1500mm 1600mm 1400*2500mm 20T 0-40m/s 11kw 8800*6300*3950mm 6500kg 4m³/h
Product Gallery
Product Description

The Diamond Wire Saw Machine is a cutting machine specially designed for cutting granite, marble, and sandstone. It is equipped with a 16.7-meter wire, which is capable of cutting materials up to 2000*3000*1500mm in size. The machine is equipped with a four-spindle linkage to ensure an accurate cutting process. It is powered by a motor that offers a wire speed of 0-40m/s, and consumes 4m3/H of water. The Diamond Wire Saw Machine is reliable and has a one-year warranty.

Applications

XIANDA MACHINERY's diamond wire saw machine is a reliable, durable and cost-saving tool used for cutting and processing various stones such as marble, granite, quartz, sandstone, limestone and more.

Certified by API, CCC, SONCAP, GOST, ISO, CE, SGS; IAF, the diamond wire saw machine can be purchased with a minimum order quantity of 1 SET and is available for both sea and land transportation with suitable plastic package.

Customization Options
  • Brand Name: XIANDA MACHINERY
  • Model Number: Discovery 4-2000/2500/3000
  • Place of Origin: Jinjiang, Fujian, China
  • Minimum Order Quantity: 1 SET
  • Packaging: Plastic Package, Suitable for Sea Transportation
  • Delivery Time: 1 month
Support and Services

We offer comprehensive technical support and service for Diamond Wire Saw Machine. Our technicians are available to provide support and maintenance for your machine.

Our technical support services include:

  • Troubleshooting and technical support
  • Preventive maintenance and repair services
  • On-site support and advice
  • Software updates and upgrades
  • Replacement parts for Diamond Wire Saw Machine
Frequently Asked Questions
Q: What is the Brand Name of the Diamond Wire Saw Machine?

A: The Brand Name is XIANDA MACHINERY

Q: What is the Model Number of the Diamond Wire Saw Machine?

A: The Model Number is Discovery 4-2000/2500/3000

Q: Where is the place of origin for the Diamond Wire Saw Machine?

A: The place of origin is Jinjiang, Fujian, China
