5-Axis CNC Milling & Cutting Carving Center | High-Speed Precision Parts Processing

1
MOQ
To Be Negotiable
harga
5-Axis CNC Milling & Cutting Carving Center | High-Speed Precision Parts Processing
fitur Galeri Deskripsi Produk Quote request suatu
fitur
Spesifikasi
Sistem: Sistem CNC hubungan 5 sumbu
Poros: Spindel BT yang diimpor
Mode transmisi: Mekanisme penggerak rak
Teknologi kontrol: Kontrol servo absolut bus
Bahan: Rangka Baja + Meja Besi Cor
Jaminan: 1 tahun
Kekuatan kotor: 57/67kw
Pemrosesan multi fungsi: Integrasi pemotongan & ukiran
Pemesinan presisi: Tinggi
Jenis: Fokus batu sedang & besar
Pertunjukan: Stabilitas yang kuat
Menyoroti:

5-axis CNC milling machine

,

high-speed CNC cutting center

,

precision bridge saw machine
Informasi dasar
Tempat asal: Jinjiang, Fujian, Cina
Nama merek: Xianda Machinery
Sertifikasi: API, CCC, SONCAP, GOST, ISO, CE, SGS;IAF
Nomor model: Pemimpin 1500/1500CM
Syarat-syarat pembayaran & pengiriman
Kemasan rincian: Paket plastik, cocok untuk transportasi laut
Waktu pengiriman: 1 bulan
Syarat-syarat pembayaran: L/c ， t/t ， d/p ， western union ， paypal ， money gram ， lainnya
Menyediakan kemampuan: 1000 set/tahun
Deskripsi Produk
5-Axis CNC Milling & Cutting Carving Center | High-Speed Precision Parts Processing
5 Axis Machining Center with high-speed 5-axis CNC capabilities for precision cutting, milling, and carving operations.
Product Specifications
Attribute Value
System 5-axis linkage CNC system
Spindle Imported BT spindle
Transmission mode Rack drive mechanism
Control Technology Bus absolute servo control
Material Steel Frame + Cast Iron Table
Warranty 1 Year
Gross power 57/67kw
Multi function processing Cutting & carving integration
Precision machining High
Type Medium & large stone focus
Performance Strong stability
5-Axis CNC Milling & Cutting Carving Center | High-Speed Precision Parts Processing 0
5-Axis CNC Milling & Cutting Carving Center | High-Speed Precision Parts Processing 1

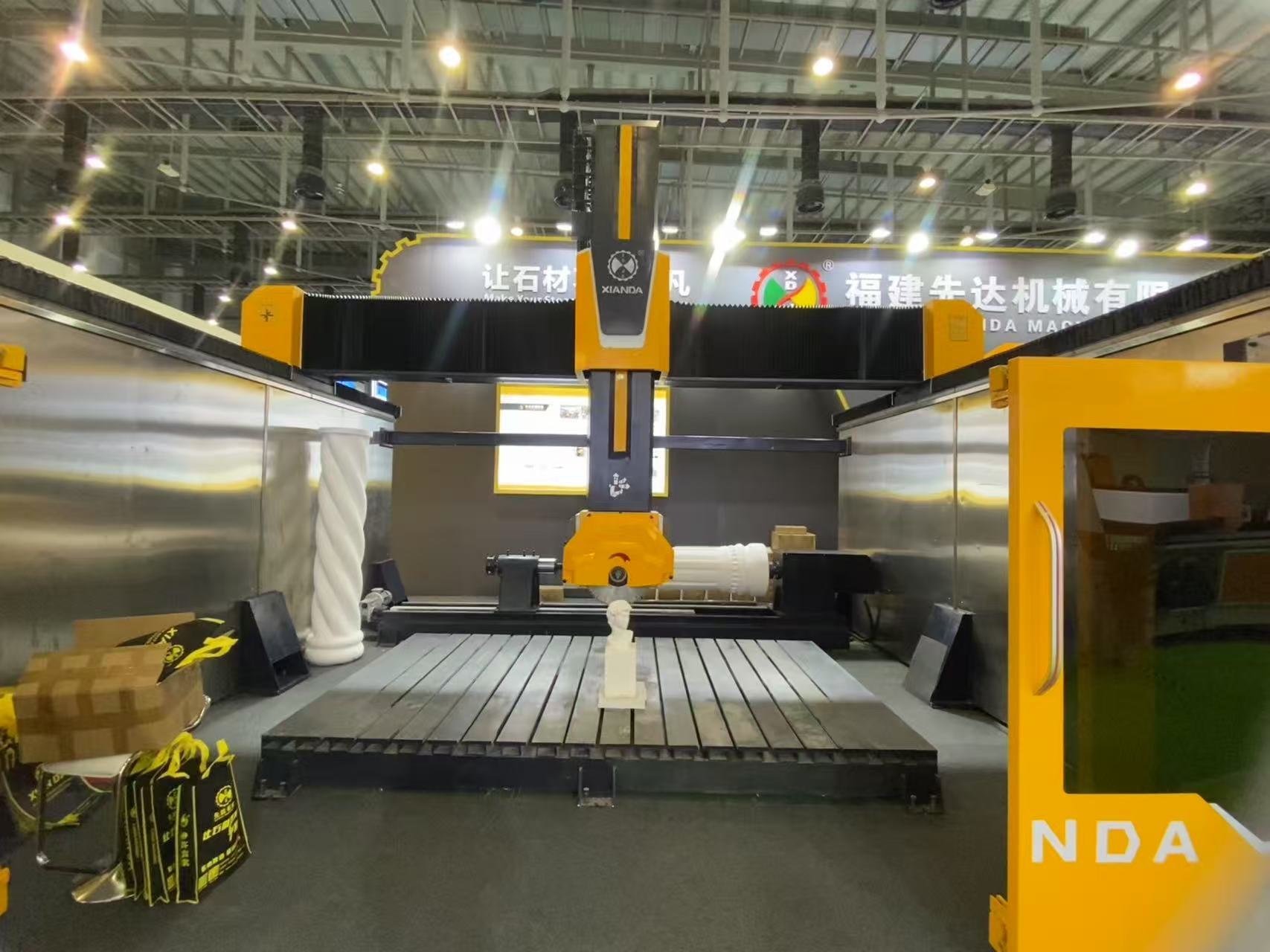

Technical Parameters
Parameter Leader1500 Leader1500CM
X/Y/Z Travel 3800 * 2700 * 1500 mm 3800 * 3500 * 1500 mm
A/C Tilt & Rotation A 0-180°, C ±365° A 0-180°, C ±365°
Blade / Tool Range Φ350-700 mm Φ350-700 mm
Spindle 20 kW water-cooled BT40, 0-10 000 rpm 20 kW water-cooled BT40, 0-10 000 rpm
Table Size 3400 * 2000 mm fixed 3400 * 2000 mm + Φ50-600 mm rotary axis
Max Cylinder Length -- 3200 mm
Overall Footprint 6600 * 4000 * 5500 mm 6600 * 4800 * 5500 mm
Power 31 kW 34 kW
Weight 9 000 kg 11 000 kg

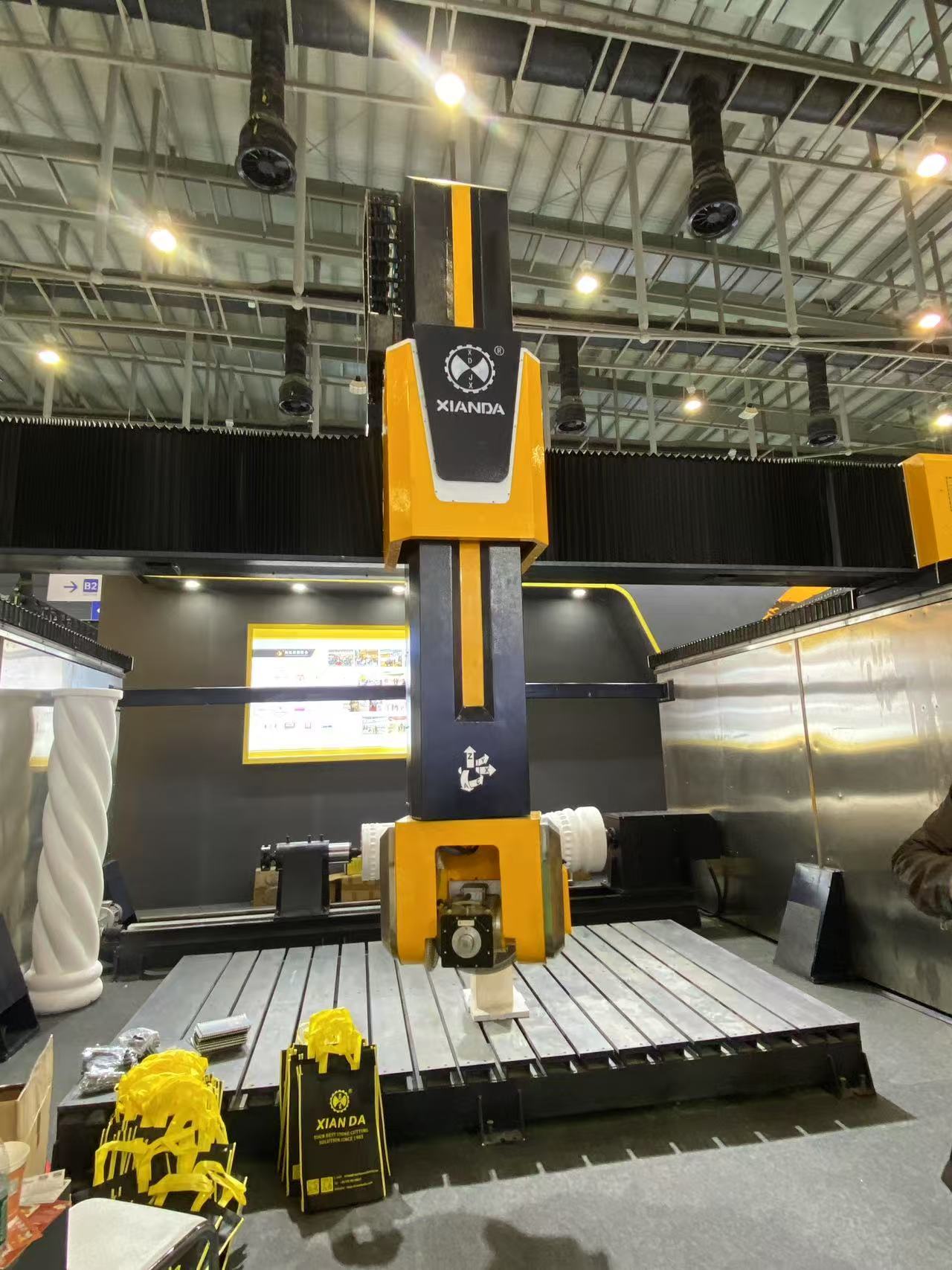

Key Features
  • True 5-Axis Simultaneous Control: Imported CNC system with EtherCAT bus absolute servo drives delivers micron-level repeatability for 3D bas-reliefs, intricate moldings and spiral columns.
  • 20 kW BT40 Spindle: Water-cooled, Italian-made, 10,000 rpm max. Handles 700 mm saw blades for fast slab squaring and micro-endmills for fine engraving in one setup.
  • Hybrid Table Design: The Leader1500CM adds a 4th-axis rotary table (Φ50-600 mm, 3200 mm long) without sacrificing flat-table space.
  • Heavy-Duty Frame: 11-ton gantry, stress-relieved steel; rack-and-pinion on HIWIN linear rails for vibration-free cutting at 30 m/min.
  • Stone-Specific Software: Pre-loaded macros for profiling, arch cutting, sink cut-outs, crown molding and column fluting.

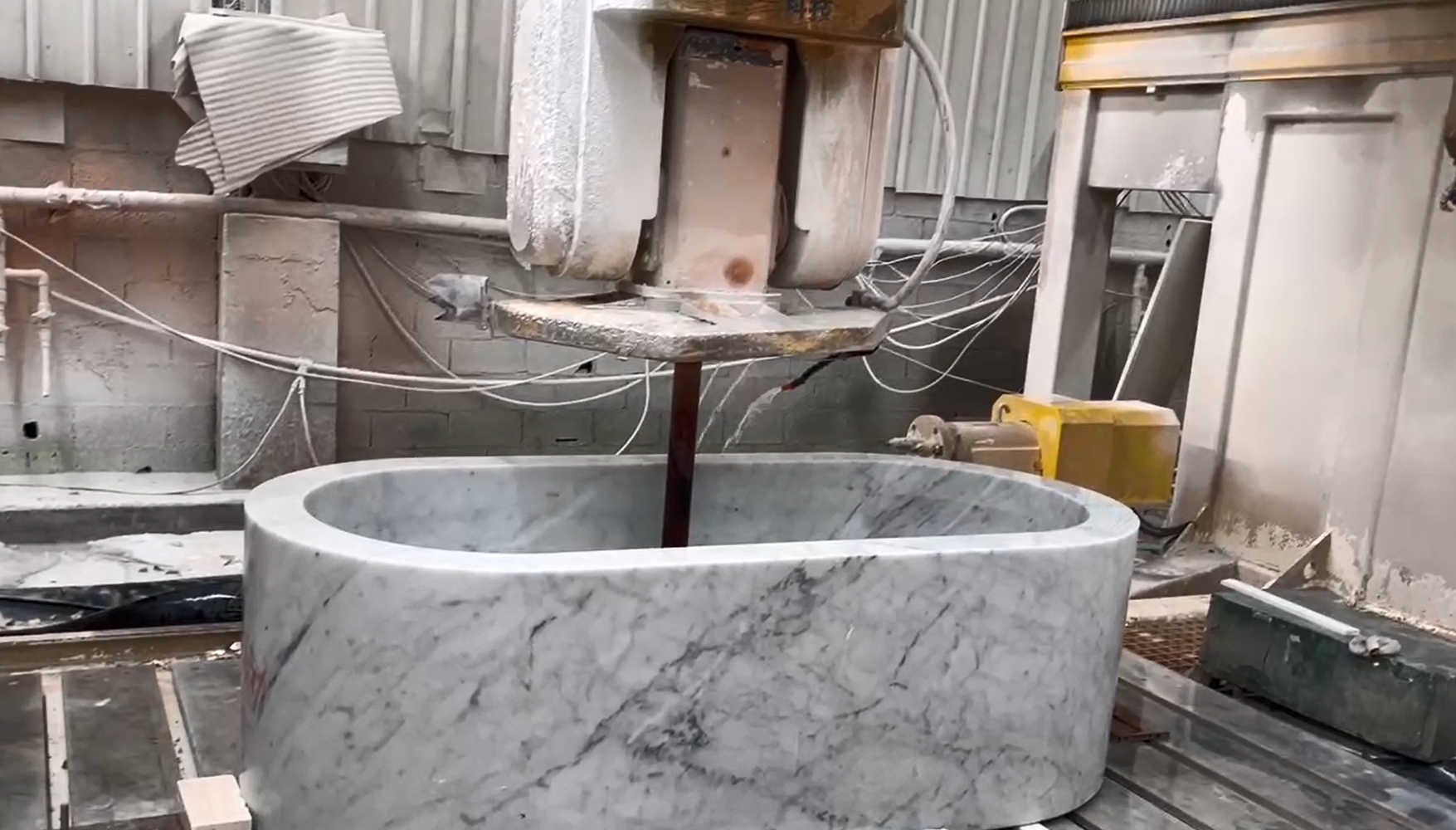

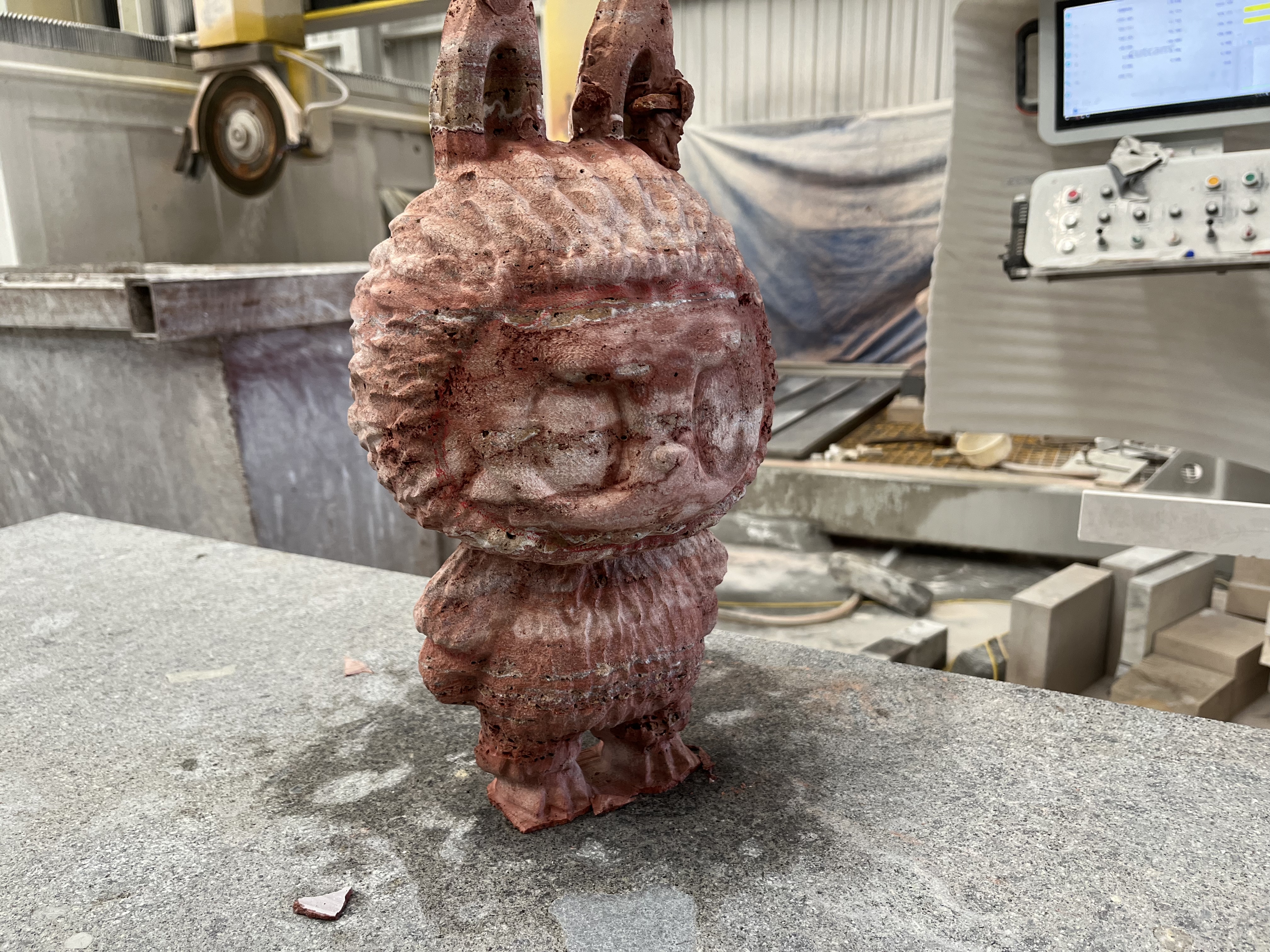

Applications
  • Kitchen islands with waterfall edges
  • Roman column carving (Leader1500CM's rotary axis)
  • 3D logos on lobby floors
  • Fireplace mantels with undercut details
  • Cemetery monuments and statues
Maintenance & Support
Water consumption ≤ 3 m³/h--closed-loop chiller compatible
Tool magazine (optional) 12 positions, HSK-F63 quick-change
Remote diagnostics via Ethernet--technician login within 2 hours globally
Contact group@chinaxianda / WAS 8613055673306 for instant quotation.
