Discovery 4 CNC Diamond Wire Saw Machine For Marble Granite

1
MOQ
To Be Negotiable
harga
Discovery 4 CNC Diamond Wire Saw Machine For Marble Granite
fitur Galeri Deskripsi Produk Quote request suatu
fitur
Spesifikasi
Kecepatan kawat: 0-40m/s
Diameter roda: 1600MM
berat kotor: 6000kg
Konsumsi air: 6m3/jam
Sertifikasi: API, CCC, SONCAP, GOST, ISO, CE, SGS;IAF
Kata Kunci: Mesin batu
Masa Garansi: setahun
Kontrol: Mesin Pemotong CNC
Ukuran pemrosesan maksimal: 2000*3000*1500mm
Ukuran pemrosesan maksimal: 3000*2500*1500mm
Diameter kawat: 0.6-1.8mm
Otomatisasi: Otomatis
Panjang kawat: 10m
Tipe Kontrol: CNC
Panjang pemotongan: 20-60m
Diameter: 8.5mm hingga 11.5mm
Pemotongan Presisi: Tinggi
Poros: 15kw
Ukuran troli: Ukuran 1400*2500mm
Jarak Penyesuaian: 450mm
Motor kotor: 11kw
Sistem Pengendalian: Sistem PLC
Nilai daya: 2.2kw
Menyoroti:

CNC diamond wire saw machine

,

marble cutting wire saw

,

granite wire saw machine
Informasi dasar
Tempat asal: Jinjiang, Fujian, Cina
Nama merek: Xianda Machinery
Sertifikasi: API, CCC, SONCAP, GOST, ISO, CE, SGS;IAF
Nomor model: Discovery 4-2000/2500/3000
Syarat-syarat pembayaran & pengiriman
Kemasan rincian: Paket plastik, cocok untuk transportasi laut
Waktu pengiriman: 1 bulan
Syarat-syarat pembayaran: L/c ， t/t ， d/p ， western union ， paypal ， money gram ， lainnya
Menyediakan kemampuan: 1000 Set/tahun
Deskripsi Produk
Discovery 4 CNC Diamond Wire Saw Machine
Precision cutting machine designed for processing large stone blocks into various special shapes. This cost-effective solution delivers high-precision cuts in granite, marble, and other stone materials with exceptional efficiency and durability.
Technical Specifications
Model Max Processing Size Wheel Diameter Trolley Size Table Bearing Weight Wire Speed Main Motor Outline Dimension Gross Weight Water Consumption
Discovery 4-2000 2000*3000*1500mm 1600mm 1400*2500mm 20T 0-40m/s 11kw 6800*6300*3950mm 6000kg 4m³/h
Discovery 4-2500 2500*3000*1500mm 1600mm 1400*2500mm 20T 0-40m/s 11kw 7800*6300*3950mm 6250kg 4m³/h
Discovery 4-3000 3000*3000*1500mm 1600mm 1400*2500mm 20T 0-40m/s 11kw 8800*6300*3950mm 6500kg 4m³/h
Product Images

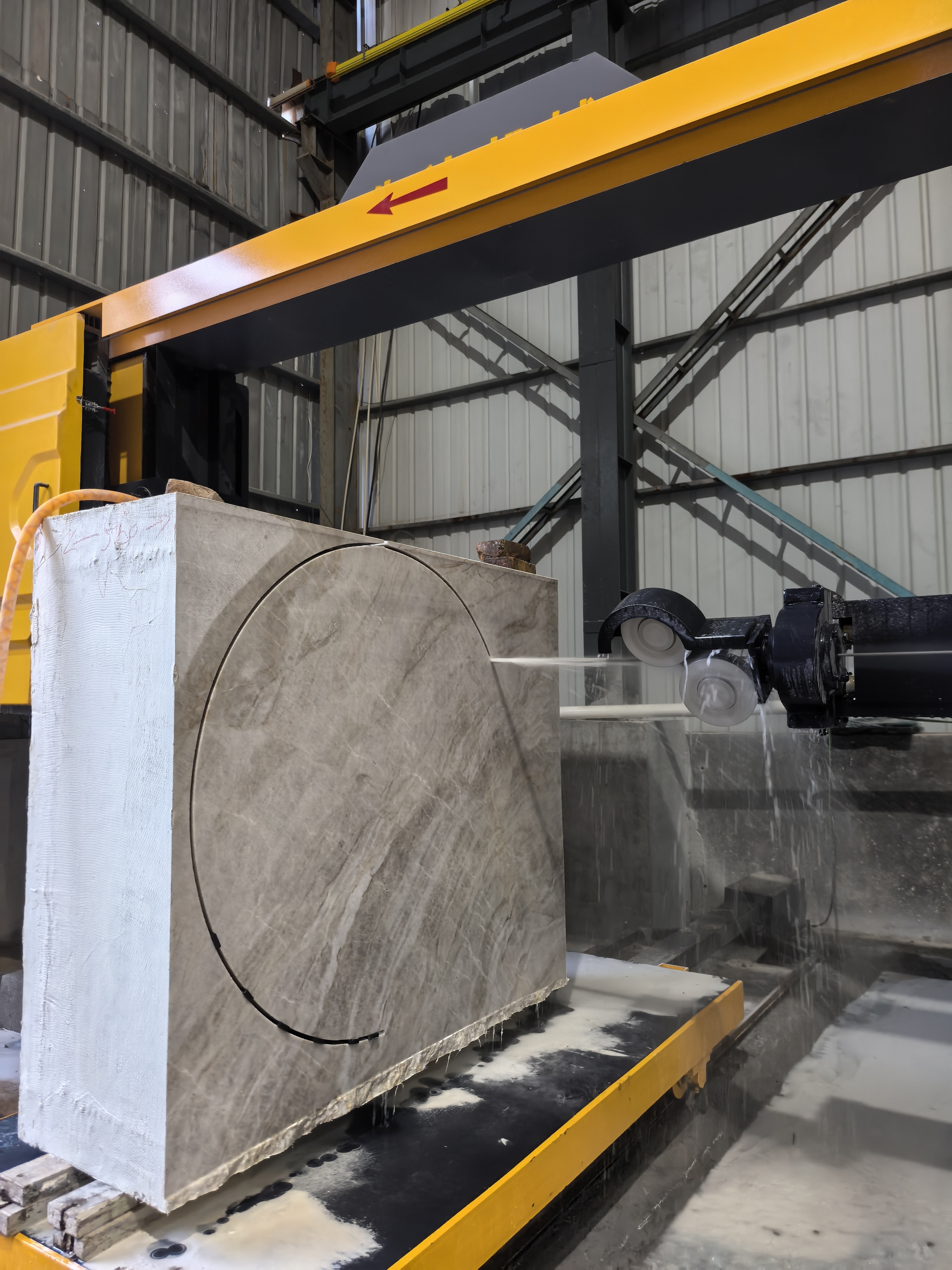

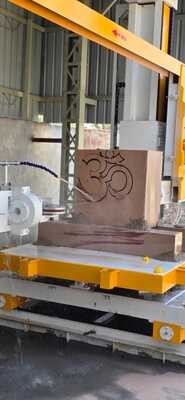

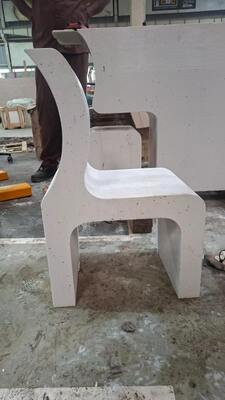

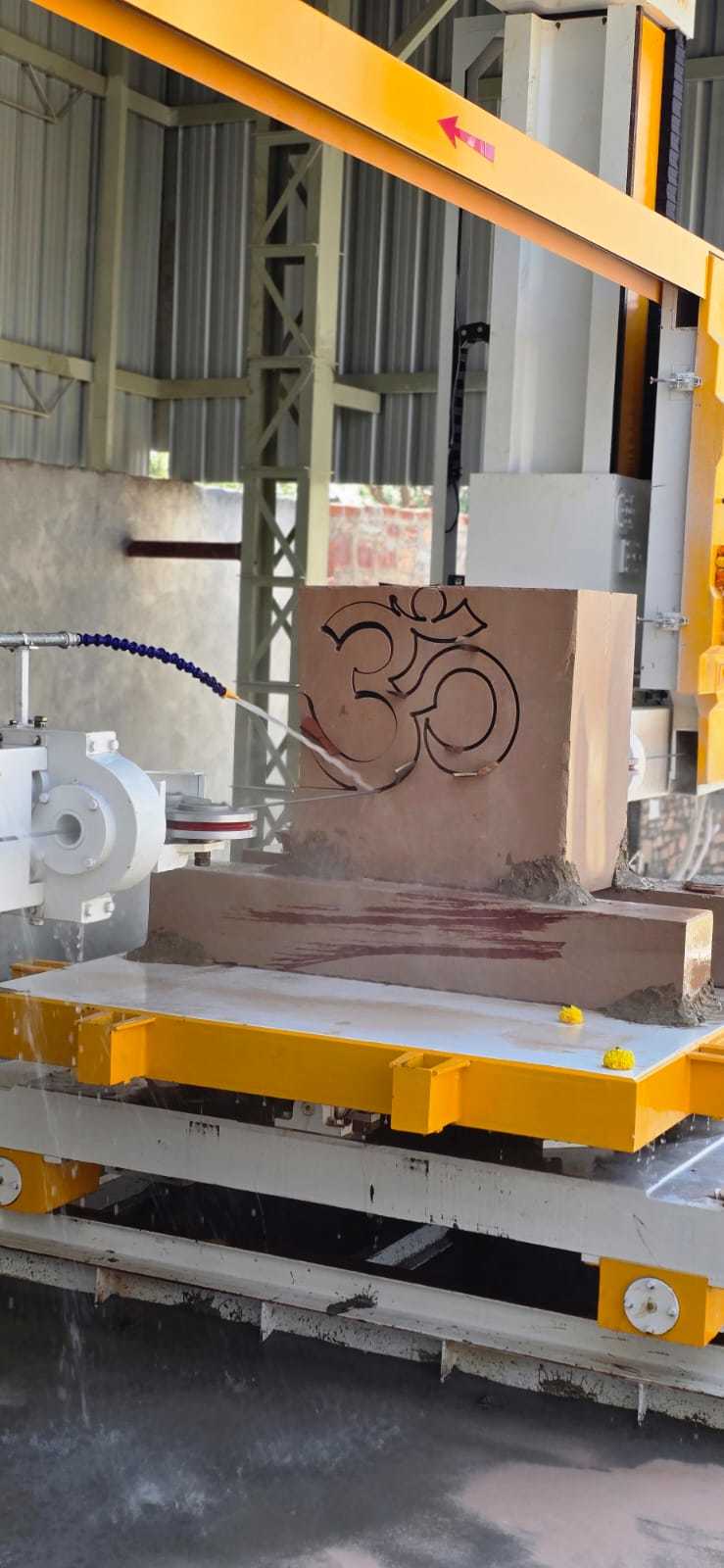

Discovery 4 CNC Diamond Wire Saw Machine For Marble Granite 0 Discovery 4 CNC Diamond Wire Saw Machine For Marble Granite 1 Discovery 4 CNC Diamond Wire Saw Machine For Marble Granite 2
Key Features
  • CNC control system for precise automated operation
  • Maximum processing capacity up to 3000*3000*1500mm
  • Durable 1600mm wheel diameter for stable cutting
  • 20-ton table bearing capacity for heavy stone blocks
  • Variable wire speed up to 40m/s for optimal cutting performance
  • Low water consumption at 4m³/h for efficient operation

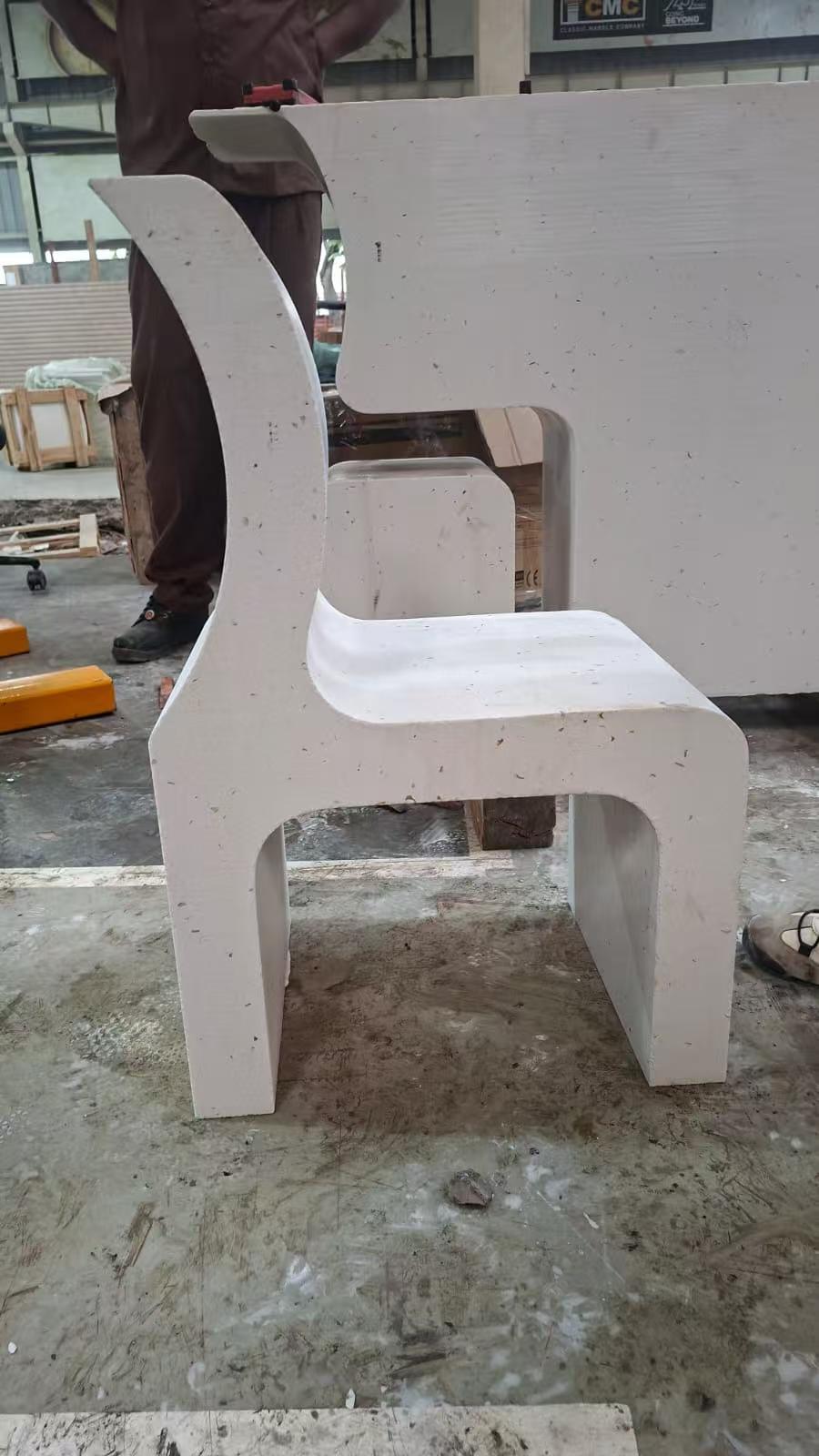

  • Designed for cutting intricate shapes including round and curved stones
Applications
This diamond wire saw machine is ideal for stone cutting applications including block squaring, slab cutting, and creating special shapes. It effectively processes marble, granite, artificial stone, sandstone, quartz, and other stone materials. Suitable for both large-scale industrial operations and specialized stone fabrication projects.
Customization & Ordering Details
  • Brand Name: XIANDA MACHINERY
  • Model Numbers: Discovery 4-2000, 4-2500, 4-3000
  • Origin: Jinjiang, Fujian, China
  • Certifications: API, CCC, SONCAP, GOST, ISO, CE, SGS, IAF
  • Minimum Order: 1 SET
  • Packaging: Plastic packaging suitable for sea transportation
  • Delivery Time: 1 month
  • Supply Capacity: 1000 Sets/Year
  • Payment Options: L/C, T/T, D/P, Western Union, Paypal, Money Gram
Technical Support & Services
Our dedicated technical support team provides comprehensive services including maintenance, repair, troubleshooting, and installation. We offer training and expert advice on machine operation and maintenance to ensure optimal performance and longevity.
Packaging & Shipping
Each diamond wire saw machine is securely packaged in protective wooden crates designed for safe sea transportation. All shipments are tracked and monitored throughout the delivery process to ensure timely and secure arrival.
Frequently Asked Questions
  • What is the brand name of the diamond wire saw machine? The brand name is XIANDA MACHINERY.
  • What model numbers are available? Available models include Discovery 4-2000, 4-2500, and 4-3000.
  • Where is the machine manufactured? The machine is manufactured in Jinjiang, Fujian, China.
  • What certifications does the machine have? Certifications include API, CCC, SONCAP, GOST, ISO, CE, SGS, and IAF.
  • What is the minimum order quantity? The minimum order quantity is 1 SET.
