5+1 Axis Cnc Machining Center For Granite Marble 3d Sculpture ,Tub

1
MOQ
To Be Negotiable
harga
5+1 Axis Cnc Machining Center For Granite Marble 3d Sculpture ,Tub
fitur Galeri Deskripsi Produk Quote request suatu
fitur
Spesifikasi
Jaminan: 1 Tahun, satu tahun, 12 Bulan, 18 Bulan, 2 Tahun
Layanan purna jual disediakan: Insinyur tersedia untuk mesin layanan di luar negeri, dukungan online, dukungan teknis video, layana
dimensi (l*w*h): 6000*1400*1550mm, 3500*4000*2500mm, 3250x3450x900mm, 2200*2200*1700,775*270*460mm
Voltase: 380V, 380V/50Hz, 230V/380V, 220V, opsional
Penggunaan: Pengerjaan Kayu, Gergaji Potong Kayu, Pemotongan Kayu, gergaji potong, Pemotongan Logam
kekuatan (w): 5.5kw, 12.5kw, 350w, 550.3.0kw
Gaya: Horizontal, lainnya, vertikal
Menggunakan: Woodworking, granit, dan marmer
Nama Produk: Mesin gergaji kayu pemotongan otomatis, gergaji gergaji kecepatan tinggi otomatis, mesin pemotong ai
Jenis: Band Saw, SF606, Penuh Otomatis, Gergaji Cut off, Saw Panel Meja
Aplikasi: Panel mesin pemotong kayu, pabrik kerja kayu, mesin pemotong batu marmer granit, pengerjaan kayu, pr
Nilai daya: 3KW, 3.0kW, 2.4kW, 4kw, 3.3/4.0 kW
Nama: Mesin gergaji pita pemotong kayu, meja geser panel otomatis gergaji mesin pemotong kayu, gergaji pan
Warna: Biru, dirancang pelanggan, dapat disesuaikan, biru atau disesuaikan, kuning
Diameter Mata Gergaji: 300mm (250mm-350mm), 400mm, 455mm
Kata kunci: Gergaji pemotongan kecepatan tinggi, mesin pemotong pita logam horizontal, mesin gergaji pemotong ot
Menyoroti:

5 Axis Cnc Machining Center

,

3d Sculpture Cnc Machining Center

,

Granite Cnc Machining Center
Informasi dasar
Tempat asal: Jinjiang, Fujian, Cina
Nama merek: Xianda Machinery
Sertifikasi: API, CCC, SONCAP, GOST, ISO, CE, SGS;IAF
Nomor model: Pemimpin 1500
Syarat-syarat pembayaran & pengiriman
Kemasan rincian: Paket plastik, cocok untuk transportasi laut
Waktu pengiriman: 1 bulan
Syarat-syarat pembayaran: L/c ， t/t ， d/p ， western union ， paypal ， money gram ， lainnya
Menyediakan kemampuan: 1000 Set/tahun
Deskripsi Produk

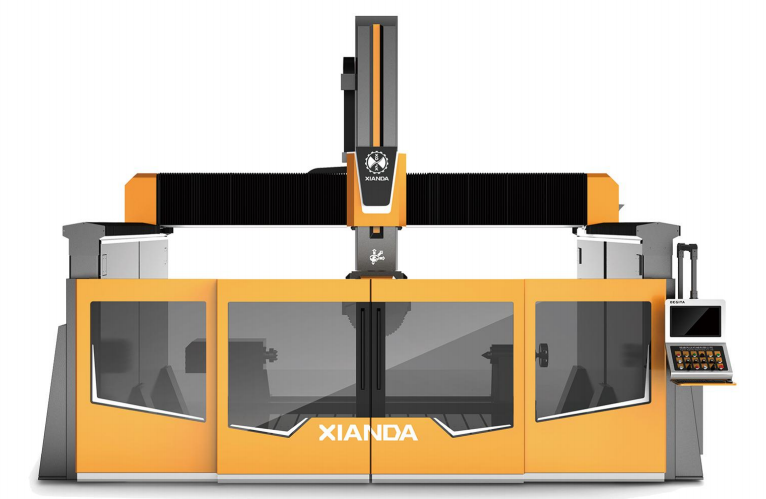

5+1 Axis CNC Machining Center For Granite Marble 3D Sculpture & Tub
High-speed 5-axis CNC mill with cutting and carving integration for precision stone machining applications.
Product Specifications
Attribute Value
System 5-axis linkage CNC system
Spindle Imported BT spindle
Transmission mode Rack drive mechanism
Control Technology Bus absolute servo control
Material Steel Frame + Cast Iron Table
Warranty 1 Year
Gross power 57/67kw
Multi function processing Cutting & carving integration
Precision machining High
Type Medium & large stone focus
Performance Strong stability
5+1 Axis Cnc Machining Center For Granite Marble 3d Sculpture ,Tub 0
5+1 Axis Cnc Machining Center For Granite Marble 3d Sculpture ,Tub 1
Technical Parameters
Parameter Leader1500 Leader1500CM

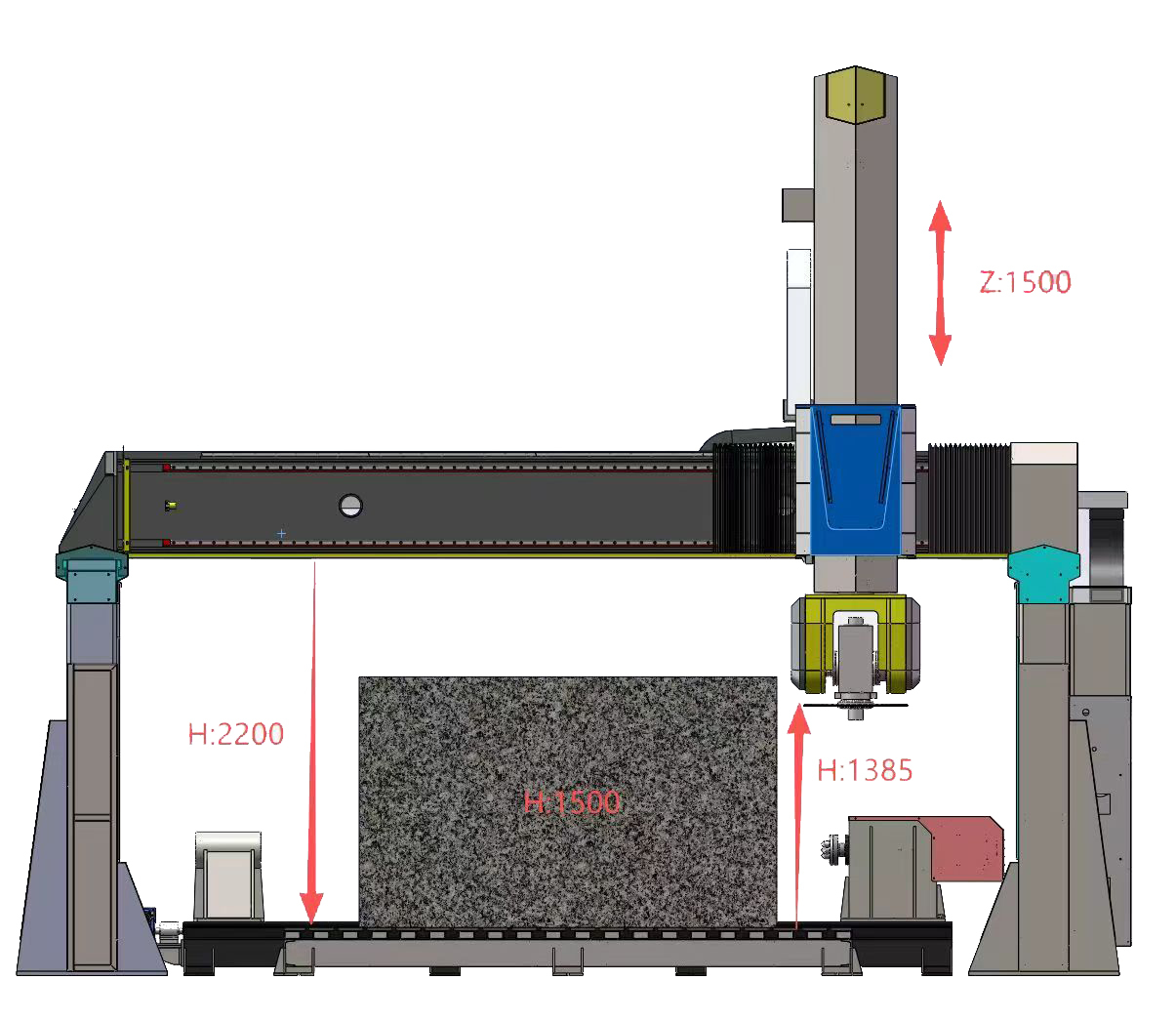

X/Y/Z Travel 3800 * 2700 * 1500 mm 3800 * 3500 * 1500 mm
A/C Tilt & Rotation A 0-180°, C ±365° A 0-180°, C ±365°
Blade / Tool Range Φ350-700 mm Φ350-700 mm
Spindle 20 kW water-cooled BT40, 0-10 000 rpm 20 kW water-cooled BT40, 0-10 000 rpm
Table Size 3400 * 2000 mm fixed 3400 * 2000 mm + Φ50-600 mm rotary axis
Max Cylinder Length -- 3200 mm
Overall Footprint 6600 * 4000 * 5500 mm 6600 * 4800 * 5500 mm
Power 31 kW 34 kW
Weight 9 000 kg 11 000 kg
Key Features
  • True 5-Axis Simultaneous Control: Imported CNC system with EtherCAT bus absolute servo drives delivers micron-level repeatability for 3D bas-reliefs, intricate moldings and spiral columns.
  • 20 kW BT40 Spindle: Water-cooled, Italian-made, 10,000 rpm max. Handles 700 mm saw blades for fast slab squaring and micro-endmills for fine engraving in one setup.
  • Hybrid Table Design: The Leader1500CM adds a 4th-axis rotary table (Φ50-600 mm, 3200 mm long) without sacrificing flat-table space.
  • Heavy-Duty Frame: 11-ton gantry, stress-relieved steel; rack-and-pinion on HIWIN linear rails for vibration-free cutting at 30 m/min.
  • Stone-Specific Software: Pre-loaded macros for profiling, arch cutting, sink cut-outs, crown molding and column fluting.

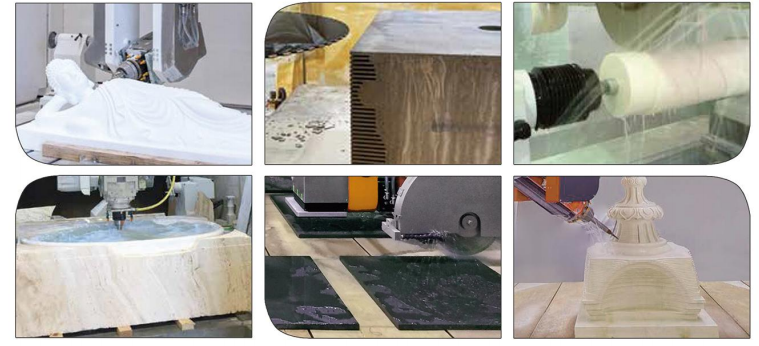

Applications
  • Kitchen islands with waterfall edges
  • Roman column carving (Leader1500CM's rotary axis)
  • 3D logos on lobby floors
  • Fireplace mantels with undercut details
  • Cemetery monuments and statues
Maintenance & Support
Water consumption ≤ 3 m³/h—closed-loop chiller compatible. Tool magazine (optional) 12 positions, HSK-F63 quick-change. Remote diagnostics via Ethernet—technician login within 2 hours globally.
Contact Information
Email: group@chinaxianda
Phone: WAS 8613055673306
Contact for instant quotation.
