Name: 5-Axis Stone Cutting Machine with DDX system
Brand: Fujian Xianda Machinery co.,ltd
SKU: Buat 600
Price: 27,508.00 USD
Availability: InStock

fitur Galeri Deskripsi Produk Quote request suatu

fitur

Spesifikasi

Nama Produk: Mesin pemotong batu 5 sumbu

Sistem Pengendalian: cnc

Jenis: Mesin jenis jembatan

Perjalanan pengangkatan maksimal: 500mm

Kekuatan: 30kW

Sistem Keamanan: Tersedia

Asal: Jinjiang, Fujian, Cina

Layanan purna jual disediakan: Dukungan Online, Dukungan Teknis Video, Layanan Pemeliharaan dan Perbaikan Lapangan, Dukungan Pihak

Menyoroti:

DDX System Stone Cutting Machine

5-Axis Stone Cutting Machine

Informasi dasar

Tempat asal: Jinjiang, Fujian, Cina

Nama merek: Xianda Machinery

Sertifikasi: API, CCC, SONCAP, GOST, ISO, CE, SGS;IAF

Nomor model: Buat 600

Syarat-syarat pembayaran & pengiriman

Kemasan rincian: Paket plastik, cocok untuk transportasi laut

Waktu pengiriman: 1 bulan

Syarat-syarat pembayaran: L/c ， t/t ， d/p ， western union ， paypal ， money gram ， lainnya

Menyediakan kemampuan: 1000 Set/tahun

Galeri

5-Axis Stone Cutting Machine with DDX system

Deskripsi Produk

5-Axis Stone Cutting Machine with DDX System

Advanced 5-axis CNC stone cutting machine featuring 500mm maximum lifting travel for precision stone processing applications.

Key Features

5-Axis CNC Precision Control with ±0.02mm repeat positioning accuracy
Industrial-Grade Stability with oil-immersed linear guideways and ball screw transmission
Multi-Functional Versatility for processing various stone materials and complex shapes
Space-Smart Design with compact footprint and intuitive CNC interface

Technical Specifications

Attribute	Value
Product Name	5-Axis Stone Cutting Machine
Control System	CNC
Type	Bridge Type Machine
Max Lifting Travel	500mm
Power	30KW
Safety System	Available
Origin	Jinjiang, Fujian, China
After-sales Service	Online support, Video technical support, Field maintenance, Overseas third-party support

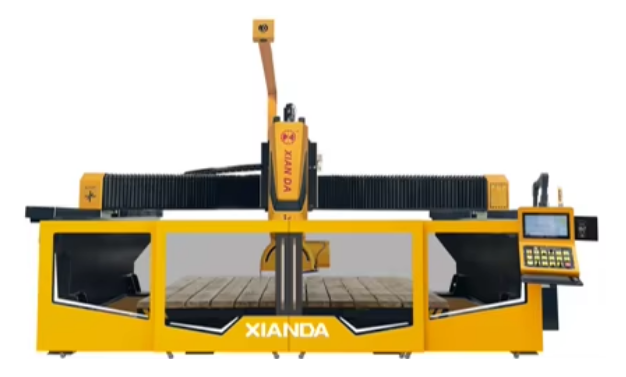

Machine Images

Detailed Specifications

Parameter	Unit	Create 450	Create 600
Blade diameter range	mm	350-450	350-600
Max processing size	mm	32002000120	34002000180
Lifting stroke	mm	300	500
Worktable size	mm	3200*2000	3400*2000
Table tilting degree	°	0-85°	0-85°
Head rotating degree	°	0-360°	0-360°
Air speed	m/min	15	15
Repeated accuracy of positioning	mm	0.1mm/1000	0.1mm/1000
Main motor	kw	18.5 (Permanent magnetic system synchronous motor)	22 (Permanent magnetic system synchronous motor)
Gross power	kw	26	30
Water consumption	m³/h	3	3
Outline dimension	mm	560036003500	580036503900
Head tilting degree	°	0-90°	0-90°
Gross weight	kg	6000	7500

Support and Services

Installation guidance and setup assistance
Technical troubleshooting support
Operator training sessions
Regular maintenance services

Packing and Shipping

The machine is securely packed in a sturdy wooden crate to ensure safe transportation. We ship worldwide using trusted shipping services and provide tracking information for all orders.

Manufacturing Facility
